Avanti Studebaker Ford Dodge Jeep

'81-'86 Jeep Scrambler CJ8

ems-cj8-scrambler

Front of Vehicle Diagram

jeep-floor-supports-drawing

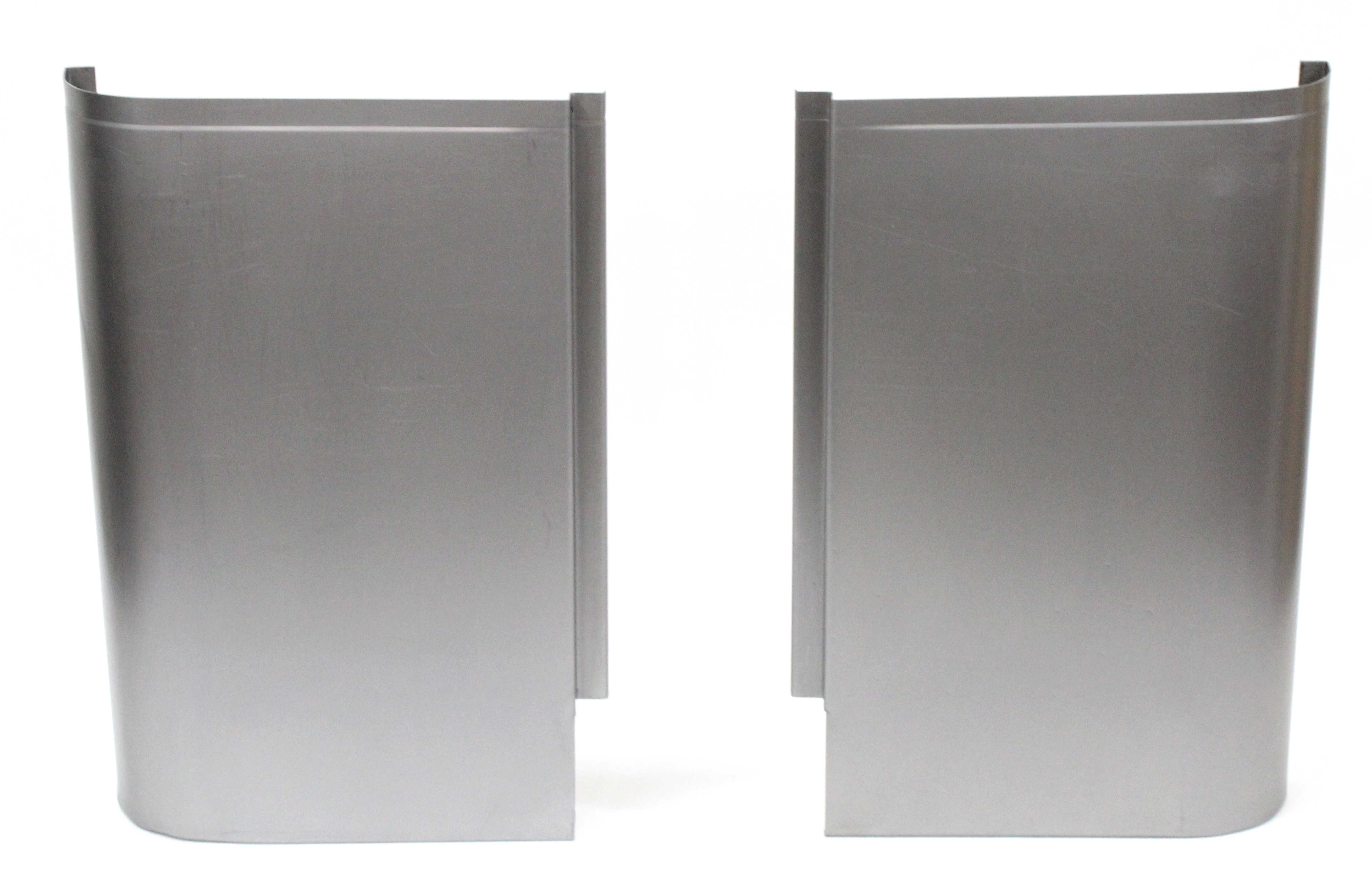

Rear Corner Tail Light Panel Section

Bottom edge formed at 90° angle. Flanged upper edge for welding purposes. Rear is curved, then formed at 90º angle, to properly meet the tail light panel.

Exposed surface approximately 17-3/4 inches tall, when measuring from lower edge to bottom of flanged area.

$55 Driver

$55 Passenger

$100 Pair

More Information and Add to Cart Options

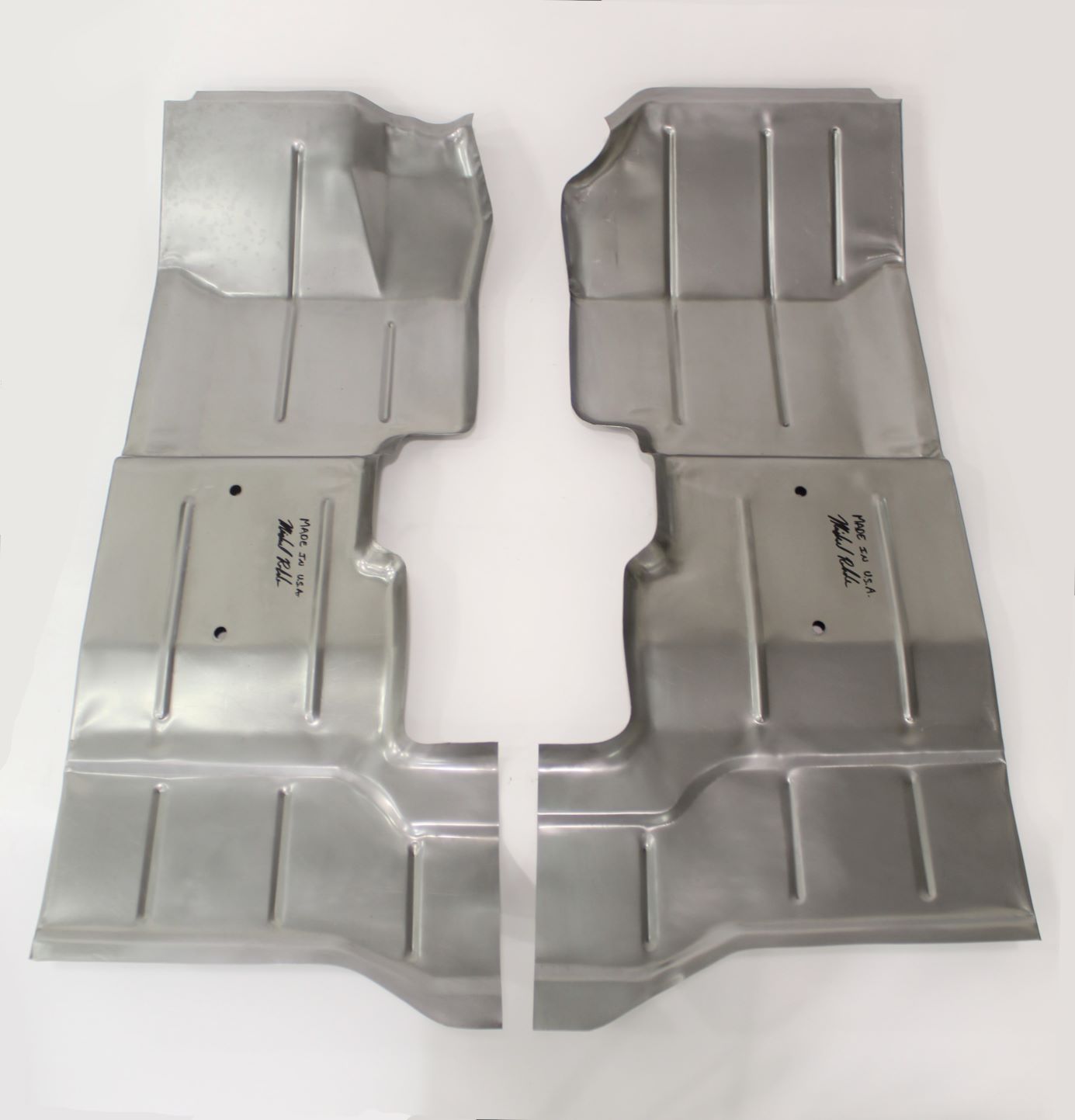

Front Floor Panels

Our extended width floor panels are  available in properly gauged steel. Our panels are accurately die stamped as a full length panel that spans the distance from the firewall seam to the rear floor riser as one continuous panel.

A one piece panel makes for fewer fitting and alignment problems and less welding and warpage during installation.

The outside edges of our panels are folded down as was original.  The inboard edges are folded properly upward to follow the transmission tunnel curvatures as shown in our photo. We do not drill or punch any holes other than the two per panel as shown in the photos at the right.  We have found that our customers prefer to drill their own according to their need and preference.

$180.00 Driver

$180.00 Passenger

$360.00 Pair

More Information and Add to Cart Options



Foot Area Repair Clip

Outside edge is rolled down as was original.

$55.00 Foot Area Repair Clip Driver

$55.00 Foot Area Repair Clip Passenger

$110.00 Foot Area Repair Clip Pair

More Information and Add to Cart Options

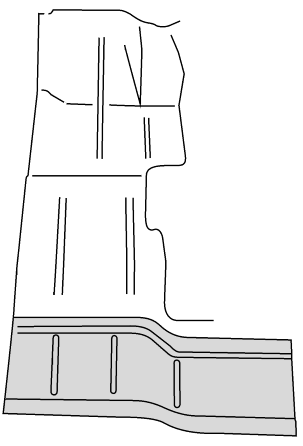

Rear of Front Floor Repair

Our rear of front floor repair panel is for the area that rusts out under the roll bar mount and seat belt area.

The outside edge is rolled down as was original.

$55.00 Drivers

$55.00 Passenger

$110.00 Pair

More Information and Add to Cart Options

Toe Board Front Floor Body Supports

All captured nuts and studs attatched.

A superior product that is manufactured to original factory gauged steel, size and standards.

$95.00 Driver

$95.00 Passenger

$190.00 Pair

More Information and Add to Cart Options

Full Width One Piece Traverse Body Supports

Our one piece support can be installed without removing the body from the frame although you may have to raise the body slightly on some types.
Installation can be accomplished by rear drive shaft and/or exhaust pipe removal in some instances.  A one piece traverse support is sure to save you considerable cutting, alignment, welding time and alleviate a lot of general installation frustration as well.

  • All appropriate nut blocks and cages pre-attached as was original.
  • None of our panels are cosmetically coated. Click here to find out why.
  • Made in the USA

$175.00 each

More Information and Add to Cart Options

Driver and/or Passenger Traverse Body Supports

As usual these products are properly gauged, with appropriate caged nuts that are pre-installed for your convenience.

$115.00 Driver Side

$115.00 Passenger Side

More Information and Add to Cart Options



Outboard Rail Floor Body Support

Captured nuts which were typical to all types are attached. Top and bottom views are shown in the photos. The support as shown is side interchangeable and is to be used on either the driver or passenger side, as was original to the vehicle.
  • Die Formed in Steel Heavier Than the Original
  • None of our panels are cosmetically coated. Click here to find out why.
  • Made in the USA

$55.00 Outboard Rail Driver

$55.00 Outboard Rail Passenger

$110.00 Pair

More Information and Add to Cart Options

jeep-cj8-outboardrailo-body-support

Inboard Rail Floor Body Support

Die formed in steel heavier than the original. Captured nuts are attached.

$55.00 Inboard Rail Driver

$55.00 Inboard Rail Passenger

$110.00 Pair

More Information and Add to Cart Options



"Jeep" Stamped Side Panel

The upper edge of our panel is flanged to allow for a flush fit when clamping against your cut along the driver and passenger side entrances.

The Jeep stamped lettering is exact in accordance to our original sample panel and approved by FCA LLC.

The forward, upper, rear and lower edges of our panel are a duplication of the original.

$165.00 Driver Side

$165.00 Passenger Side

$330.00 Pair

More Information and Add to Cart Options

Lower Repair Strip

Flanged upper edge allows for a flush fit for welding purposes. Bottom of panel and wheel arch area are properly formed like original.

  • 18 Gauge Steel
  • Exposed face surface 6 1/2" high
  • None of our panels are cosmetically coated. Click here to find out why.
  • Made in the USA

$75.00 Driver

$75.00 Passenger

$150.00 Pair

More Information and Add to Cart Options

"JEEP" Stamped Cowl Area Repair Clip

Top, front & bottom edges are formed like the original panel. Rear edge is flanged to form a flush fit during installation.



Original type reinforcement attached to the front of each panel where it bolts to the fender.



We do not pre-drill the mounting holes in the reinforcement.  The installer will drill his own holes and  thus will have the flexibility to adjust for any modifications or variations encountered during installation.

$55.00 Driver

$55.00 Passenger

$110.00 Pair

More Information and Add to Cart Options



Door Skin

Side and bottom edges are bent at 90o and the top is flanged for an easier installation. Approximately 6-1/4 inch height, plus a 1/2 inch flange, and is full width.

$50.00 Driver

$50.00 Passenger

$100.00 Pair

More Information and Add to Cart Options



Cowl Area Body Reinforcements

Jeep Cowl Area Reinforcement for all 1976-1995 Types

$60.00 Drivers

$60.00 Passenger

More Information and Add to Cart Options



Cowl Area Reinforcement Lower Repair Section

  • Die Formed
  • Heavy-Duty 14 Gauge Steel
  • 10 Inches Tall
  • None of our panels are cosmetically coated. Click here to find out why.
  • Made in the USA

$75.00 Driver

$75.00  Passenger

$150.00 Pair

More Information and Add to Cart Options

 jeep-cj8-cowl-support-clip

B Pillar, Door Latch Support, Latch Pillar Repair

The lower area of your door latch reinforcement pillar is often rusted away.  Our "B" pillar lower repair section may be all that you need for your repair.  Our product is well made, properly gauged and has a height of 5" as shown.

Note that the lower baffel is pre-installed in its proper position.

$55.00 Driver

$55.00 Passenger

$110.00 Pair

More Information and Add to Cart Options

 Studebaker rocker panel trim

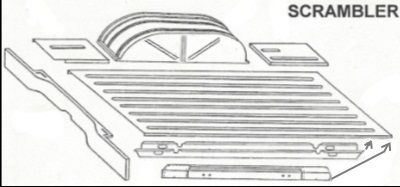

Rear of Vehicle Diagram


Rear Floor Riser

Our rear floor riser is made like the originals, properly gauged, die stamped and of very good quality.

$145.00 each

More Information and Add to Cart Options



 Studebaker rocker panel trim

Front View

  Top View

Rear Floor

Strict attention is paid to crisp stamping detail and general panel appearance and accuracy.

Our main panel is properly American gauged. Our attached floor supports are over-gauged which will provide you with a much tougher and more durable panel.

All appropriate threaded fasteners are attached as they were on the original panel.

$490.00 each*
*There is an additional $95.00 UPS oversize surcharge that is added to our standard shipping charge.

More Information and Add to Cart Options

Rear Floor Corner Panels

Front of Jeep rear floor corner panels and Rear of Jeep rear floor corner panels.

$40.00 Driver Front

$40.00 Passenger Front

$40.00 Driver Rear

$40.00 Passenger Rear

$160.00 All Four

More Information and Add to Cart Options



Rear Wheel House

Our wheelhouses are of exceptional quality and made in properly gauged American steel in our USA facility.

All ribs and outboard edges are die formed for proper appearance and detail  accuracy. Our wheelhouses are sized for an exact fit during your installation.

$185.00 Driver

$185.00 Passenger

$370.00 Pair

More Information and Add to Cart Options

Rear Floor Support

$105.00 Each

More Information and Add to Cart Options



Tailgate End Body Support

Tailgate end supports are intended to attach the body to the frame via a body bolt at each end of the support.

Our product is a very close representation of what was original to your Jeep.

It is properly factory gauged and die formed with all captured nuts brought to original factory size and standard. We have paid very close attention to quality and detail and thus have an exceptional product for you.

*Our end supports can also be ordered for use on types that do not have tailgates.

$215.00 Each

More Information and Add to Cart Options



jeep-cj8-tailgate-end-body-support



Rear Frame Crossmember Body Support

Perfectly detail cut & formed in original gauge steel.

$135 Rear Frame Crossmember

More Information and Add to Cart Options

Custom Flush Mount Taillights

Spice up your Jeep with updated taillights that are sure to give your vehicle a cool look. Each taillight has one red, one amber and one backup light along with a chrome finish perimeter bezel. Use our lights on any Jeep with or without a tailgate. Chrome bezel dimentions are 5 5/8" wide by 14 3/4" high.

$80.00 each

$160.00 pair

More Information and Add to Cart Options
