Avanti Studebaker Ford Dodge Jeep

1987-1995 Jeep Wrangler YJ

Floor Support and Panel Layout

jeep-floor-supports-drawing

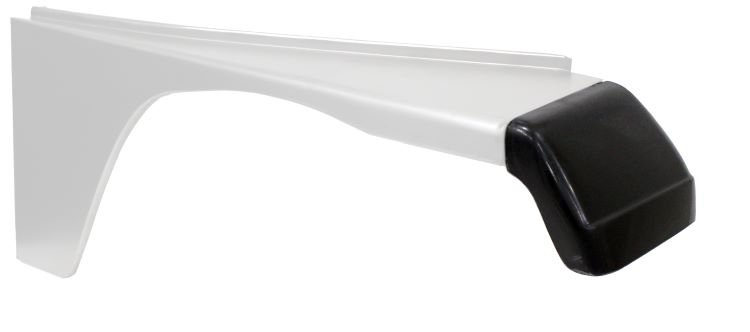

Front Fender Outer Panel

Detach your original outer fender from the Jeep inner fender splash apron. Install our panel with bolts or welds.

Includes formed wheel flare lip and formed rib along top of panel.

When combined with our fiberglass Fender Front End Cap, the panel becomes a complete outer fender.

$125.00 Front Fender Outer Panel Driver

$125.00 Front Fender Outer Panel Pass

More Information and Add to Cart Options

Jeep front fender

Front Fender End Caps

Produced locally by a second-generation fiberglass craftsman. A dent-resistant, rust-proof option for the front facing piece of the outer fender.

When combined with the steel Front Fender Outer Panel, forms a complete front fender.

Please note the fiberglass can not be welded to the steel fender, and is intended to be mounted by drilling and bolting (hardware not included). Product is not pre-finished, and must be prepped before final finish is applied

  • Not Cosmetically Coated
  • Assembly is Required
  • Fiberglass Construction
  • Made in the USA

$105.00 Driver

$105.00Passenger

$210.00 Pair

More Information and Add to Cart Options

jeep front fender end cap

Rear Corner Tail Light Panel Section

Bottom edge formed at 90° angle. Flanged upper edge for welding purposes. Rear is curved, then formed at 90º angle, to properly meet the tail light panel.

Exposed surface approximately 17-3/4 inches tall, when measuring from lower edge to bottom of flanged area.

$55 Driver

$55 Passenger

$100 Pair

More Information and Add to Cart Options

Wider Front Floor Panels

Our extended width floor panels are  available in properly gauged American draw quality steel. Our panels are accurately die stamped as a full length panel that spans the distance from the firewall seam to the rear floor riser as one continuous panel.

A one piece panel makes for fewer fitting and alignment problems and less welding and warpage during installation.

The outside edges of our panels are folded down as was original.  The inboard edges are folded properly upward to follow the transmission tunnel curvatures as shown in our photo.

We do not drill or punch any holes other than the two per panel as shown in the photos at the right.  We have found that our customers prefer to drill their own according to their need and preference.

$180.00 Driver

$180.00 Passenger

$360.00 Pair

More Information and Add to Cart Options

Foot Area Repair Clip

Outside edge is rolled down as was original.

  • Approx. 16 inches wide
  • Die Stamped
  • 18 Gauge Steel
  • None of our panels are cosmetically coated. Click here to find out why.
  • Made in the USA

$55.00 Foot Area Repair Clip Driver

$55.00 Foot Area Repair Clip Passenger

$110.00 Foot Area Repair Clip Pair

More Information and Add to Cart Options

Rear of Front Floor Repair

Our rear of front floor repair panel is for the area that rusts out under the roll bar mount and seat belt area. The outside edge is rolled down as was original.

$55.00 Drivers

$55.00 Passenger

$110.00 Pair

More Information and Add to Cart Options

Toe Board Front Floor Body Supports

All captured nuts and studs attatched. A properly gauged superior product that is manufactured to the original factory size and standards.

$95.00 Driver

$95.00 Passenger

$190.00 Pair

More Information and Add to Cart Options

Full Width One Piece Traverse Body Supports

Our product is properly gauged with all appropriate nut blocks and cages pre-attached as was original.

Our one piece support can be installed without removing the body from the frame although you may have to raise the body slightly on some types.  Installation can be accomplished by rear drive shaft and/or exhaust pipe removal in some instances.

A one piece traverse support is sure to save you considerable cutting, alignment, welding time and alleviate a lot of general installation frustration as well.

$175.00 each

More Information and Add to Cart Options

Driver and/or Passenger Traverse Body Supports

Produced with caged nuts pre-installed for your convenience.

$115.00 Driver Side

$115.00 Passenger Side

More Information and Add to Cart Options

traverse body support drivers sidetraverse body support passenger side

Outboard Rail Floor/Body Support

Supports are die formed in steel heavier than the original.

Captured nuts are attached.

Top and bottom views are shown in the photo at the right. The support as shown is side interchangeable and is to be used on either the driver or passenger side as was original to the vehicle.

$60.00 Outboard Rail Driver

$60.00 Outboard Rail Passenger

$120.00 Pair

More Information and Add to Cart Options



Inboard Rail Floor Body Support

All supports are die formed in steel heavier than the original. Captured nuts are attached.

$55.00 Inboard Rail Driver

$55.00 Inboard Rail Passenger

$110.00 Pair

More Information and Add to Cart Options

"Jeep" Stamped Side Panel Repair

The upper edge of our panel is flanged to allow for a flush fit when clamping against your cut along the driver and passenger side entrances. The Jeep stamped lettering is exact in accordance to our original sample panel and approved by FCA LLC. The forward, upper, rear and lower edges of our panel are a duplication of the original.

$155.00 Driver Side

$155.00 Passenger Side

$310.00 Pair

More Information and Add to Cart Options

Rear Side Repair

The rear 1/4 has the rear 900 bend where it meets the corner and the upper edge is flanged so you can weld to your original tub edge. The wheel opening has the finished edge as it should.

$150.00 Driver

$150.00 Pass

More Information and Add to Cart Options

Lower Repair Strip

Our panel is formed with a  flanged upper edge that allows for a flush fit for welding purposes. The length of our panel begins with a 900 fold at the front fender seam and ends with a properly formed wheel arch area just like the original. Our panel has an exposed face surface 4" high.

 $50.00 Driver

 $50.00 Passenger

 $100.00 Pair

More Information and Add to Cart Options

 jeep-wrangler-yj-side-repair-strip

"Jeep" Stamped Cowl Repair Clip

Top, front & bottom edges are formed like the original panel.  Rear edge is flanged to form a flush fit during installation.

We add an original type reinforcement to the front of each panel where it bolts to the fender.  We do not pre-drill the mounting holes in the reinforcement. The installer will drill his own holes and  thus will have the flexibility to adjust for any modifications or variations encountered during installation.

$55.00 Driver

$55.00 Passenger

$110.00 Pair

More Information and Add to Cart Options

Door Skin

Side and bottom edges are bent at 90o and the top is flanged for an easier installation. Approximately 6-1/4 inch height, plus a 1/2 inch flange, and is full width.

$50.00 Driver

$50.00 Passenger

$100.00 Pair

More Information and Add to Cart Options



Cowl Area Body Reinforcement

$60.00 Driver

$60.00 Passenger

$120.00 Pair

More Information and Add to Cart Options

Cowl Area Reinforcement Lower Repair Section
'76-86 Jeep YJ

  • Die Formed
  • Heavy 14 Gauge Steel
  • 10 Inches Tall
  • None of our panels are cosmetically coated. Click here to find out why.
  • Made in the USA

$75.00 Driver

$75.00  Passenger

$150.00 Pair

More Information and Add to Cart Options

jeep-wrangler-yj

B Pillar, Door Latch Support, Latch Pillar Repair

The lower area of your door latch reinforcement pillar is often rusted away.  Our "B" pillar lower repair section may be all that you need for your repair.  Our product is well made, properly gauged and has a height of 5".

$55.00 Driver

$55.00 Passenger

$110.00 Pair

More Information and Add to Cart Options

 Studebaker rocker panel trim

Rear Floor Riser

Our rear floor riser is made like the originals, properly gauged, die stamped and of very good quality.

$145.00 each

More Information and Add to Cart Options

 Studebaker rocker panel trim

Front View

Top View

Rear Floor

Strict attention is paid to crisp stamping detail and general panel appearance and accuracy.

Our main panel is properly American gauged. Our attached floor supports are over-gauged which will provide you with a much tougher and more durable panel.

All appropriate threaded fasteners are attached as they were on the original panel.

$350.00 Each

More Information and Add to Cart Options

jeep-rear-floor-wrangler-yj

Wheelhouse

This wheelhouse matches the original design on Jeeps from '76-'95.

The notches in the rear of the wheelhouse must be cut by the restorer. This allows a more customizable fit to meet both the varying needs of the late CJ5, CJ7, and YJ, and also any customizations that may have taken place on the Jeep throughtout the years or during restoration.

  • 18 Gauge Steel
  • Ribs and outboard edges are die formed.
  • None of our panels are cosmetically coated. Click here to find out why.
  • Made in the USA

$185.00 Driver

$185.00 Passenger

$370.00 Pair


More Information and Add to Cart Options





Wheelhouse Support Baffle

Nicely die formed panel.

$45.00 Driver

$45.00 Passenger

$90.00 Pair

More Information and Add to Cart Options

Wheel Arch Repair Panel

Properly gauged steel. 2 1/4" exposed face with a flanged edge for a flush fit for welding. The wheel side edge is properly rolled inward as was original.

$115.00 Driver

$115.00 Passenger

$230.00 Pair

More Information and Add to Cart Options

flare

Tailgate End Body Support

All tailgate end supports are intended to attach the body to the frame via a body bolt at each end of the support.  Our product is a very close representation of what was original to your Jeep.

Our product is properly factory gauged and properly die formed with all captured nuts brought to original factory size and standard. We have paid very close attention to quality and detail and thus have an exceptional product for you.

Our end supports can also be ordered for use on types that do not have tailgates.

$215.00 Each

More Information and Add to Cart Options
